Testing AMSOIL ATV/UTV Motor Oil in the RZR Pro XP Turbo

Shop the article

AMSOIL ATV/UTV ProductsAMSOIL ATV/UTV ProductsAMSOIL Racing ProductsAMSOIL Racing ProductsAMSOIL SEVERE GEAR 100% Synthetic Gear LubeAMSOIL SEVERE GEAR® 100% Synthetic Gear Lube
David Hilgendorf
by David Hilgendorf
April 23, 2025

We love to do rigorous performance testing here at AMSOIL. We run machines in real-world scenarios, just like an owner would, then we put it on the dyno and turn up the intensity.

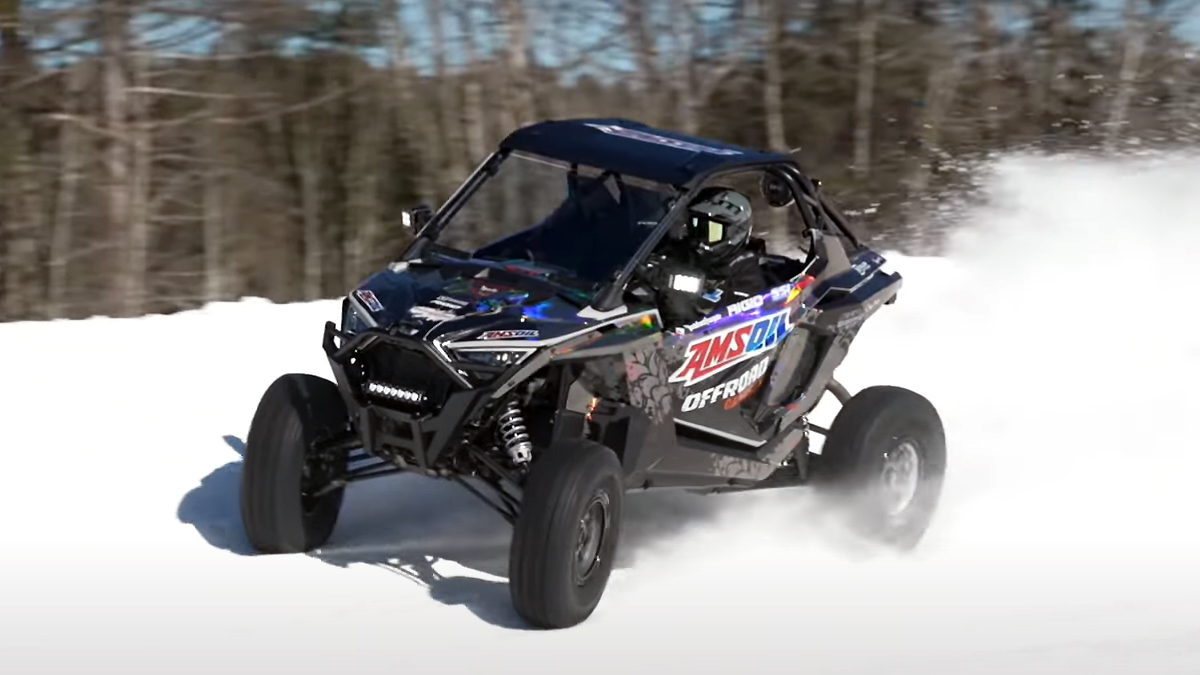

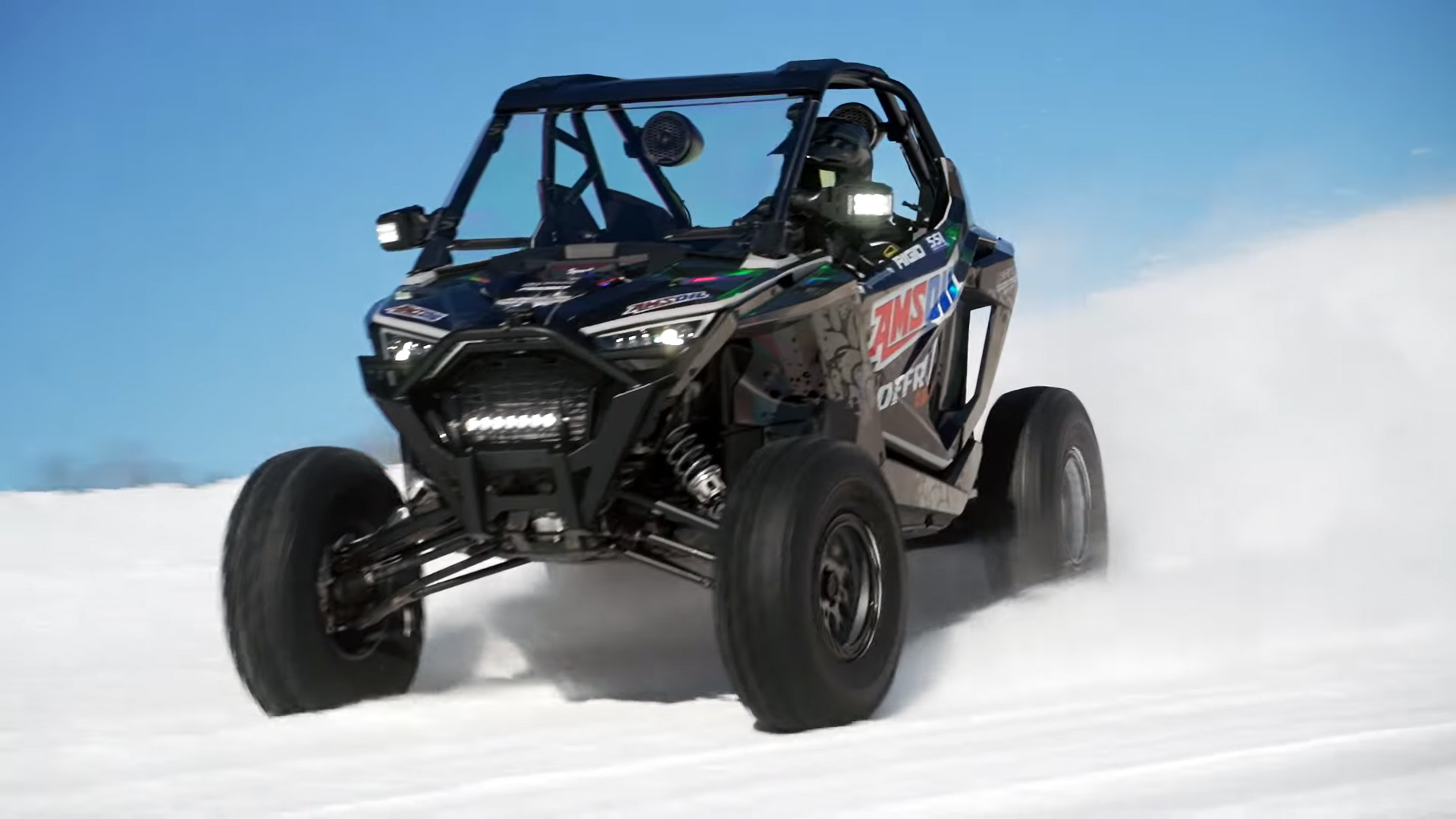

We installed AMSOIL 0W-50 Synthetic ATV/UTV Motor Oil in a turbocharged Polaris RZR Pro XP* and put it through its paces, measuring things like coolant and transmission temperature and oil temperature at max throttle and boost pressure. Then we took the data collected in field testing and pushed that performance testing up to 15% higher in our mechanical lab.

After testing AMSOIL 0W-50 Synthetic ATV/UTV Motor Oil for the recommended oil drain interval of 50 hours, we tore down the engine and transmission. The bearings are excellent indicators if the oil is doing its job. If there’s wear in a turbo application, you’ll see it on the upper shell of the rod bearing, caused by increased pressure from the turbo. The cams, lifters, bearing journals, pistons, valves and cylinders were in like-new condition, with no abnormal wear, staining or leaking.

We also analyze the oil every 10 hours throughout testing to measure any viscosity changes, oxidation, nitration, fuel buildup and other indicators that the oil is not doing its job. All test results were positive, with plenty of reserve oil capacity to continue protecting the engine even longer. We also found no metal particles across the entire 50-hour test interval, indicating that no metal parts touched, which is the oil’s primary job.

The RZR Pro XP also has a continuously variable transmission (CVT) and a gearbox to transfer power to the wheels. We did a full teardown on the transmission and gearbox and found the same results, no wear metals and minimal viscosity loss, indicating that the oil easily managed the extremes of this high-performance, turbocharged UTV engine. See for yourself in the following video.

“We simply put in stronger AMSOIL lubricants.”

Video transcript: What happens to a UTV engine when you run it 50 hours straight?

The UTV market continues to grow and at AMSOIL we love to test. So we went out and we got a 2023 Polaris* RZR* Pro XP Turbo and we put it through its paces. We ran what we call at AMSOIL a proof of performance. That’s where we go out and we collect field data as if the machine were to be used by a normal user and then we turn up the intensity of that data and we get it on the dyno.

So we need to understand oil temperatures, acceleration rates, max throttle. We put sensors on the oil sump. We put sensors on the coolant, boost pressure, temperatures of the transmission, temperatures of the CVT belt. So we build a run profile based on the data collected in the field.

We then turn up the intensity and in this case it was turned up 10 to 15 percent depending on the run cycle. Total time for this test was 50 hours. That is the recommended oil drain interval for this machine. The oil being used AMSOIL ATV UTV 0W50.

Once the machine is on the dyno and running it’s a waiting game we get through 50 hours of testing and it’s time to take it apart and look at the results. So in this case we’ll be looking at the engine and the transmission. The pistons, crowns of the piston. Minimal depositing.

The under crown of the piston. No depositing at all. The piston looks almost new. This area gets very hot so if you’re going to see depositing that’s an area where you will see staining in a situation where the oil may not be doing its job.

So in this case they look excellent. Perfectly clean. Valve guides look excellent. No abnormal wear.

No depositing at all. The valves themselves we pull those out for an inspection. We look at the stems. We look at the seeds.

They look excellent. There’s no staining. There’s no indications that the valves were carboned up and leaking which can be the case. In certain situations where the oil may not be doing its job you can get a piece of carbon that could hold a valve off its seat and you might end up getting some kind of a leak.

You start losing performance. In this case everything looks beautiful. No issues at all. Valves were sealing perfectly.

From there you move to the cylinders. You can still see the cross hatching in the cylinders. We’re used to this at AMSOIL. We understand how these machines work.

We understand how to build oil. So it’s not surprising when we see really clean cylinders. That means that you’re keeping the oil in that cylinder to keep everything lubricated. Everything is sealing.

The engine retains the power that it had at the beginning of the test all the way through the engine’s life. From the cylinders we move to the valve train. We disassemble all the small parts of the valve train and we look at them individually. So you start with the camshaft.

There’s no sign of anywhere on the cam. The lobes look great. The bearing journals look great. We move to the intake and exhaust lifters.

They look great as well. Sometimes you’ll see staining with an inferior product, with excess heat. In this case here everything’s clean. No staining.

No wear. From there we look at bearings. These are critical areas that tell you whether or not the oil is doing its job. If you are going to see wear in a turbo application you’ll see it on the upper shell of the rod bearing because you’ve got increased pressure coming down on that from the turbo.

The case here the bearings look as good as when we put them in. Main bearings are the same case. All indications are viscosity was providing protection required to keep this motor looking excellent. We look at oil analysis throughout the test and in this case we sampled every 10 hours.

We have oil samples from 10, 20, 30, 40 and then 50 which would represent end of test. We track things like viscosity. How much does the viscosity change? We look at things like oxidation, nitrogen.

Is there a fuel buildup problem? Are there things going on in the oil that would tell us that it’s not doing its job? In this case all of the results are positive. We are not seeing excess amounts of viscosity changed.

The oil did not oxidize due to heat. We don’t have a fuel dilution problem and there’s plenty of reserve capacity for this oil to continue to protect. We look at the wear metals from the same oil samples at the same drain interval and there are no wear metals to report. So there are no metal parts touching which is the oil’s main job is to make sure no metal parts actually touch.

It’s done that here extremely well. We have virtually zero wear metals across the entire 50-hour test interval. The transmission on the Polaris is a CVT but there’s still a gearbox to move the power from the engine through the CVT out to the wheels. So we do look at the transmission on this test.

Transmission was tested the same amount of time. It was a 50-hour test and at the end we look at oil analysis and we do a full tear down same as the engine. Oil analysis on the transmission is the same story as the engine. Very little to no wear metals, very little viscosity loss indicating to us that the oil is more than up to handling the job, you know, even in this turbocharged Polaris.

So the results are in. AMSOIL ATV UTV 0W50 performed flawlessly. We showed you the test, we showed you the results and if you own one of these machines and you’re out taking it to the limit, have confidence that AMSOIL has you protected.

At AMSOIL, we understand how machines work and how to build oil. So, it’s not surprising  when we see clean cylinders after testing. That means we’re keeping the oil in the cylinder and that everything is correctly lubricated and sealed. A well-lubricated engine retains its full power through the engine’s entire life, while low-quality oil will both reduce performance and cause engine wear over time.

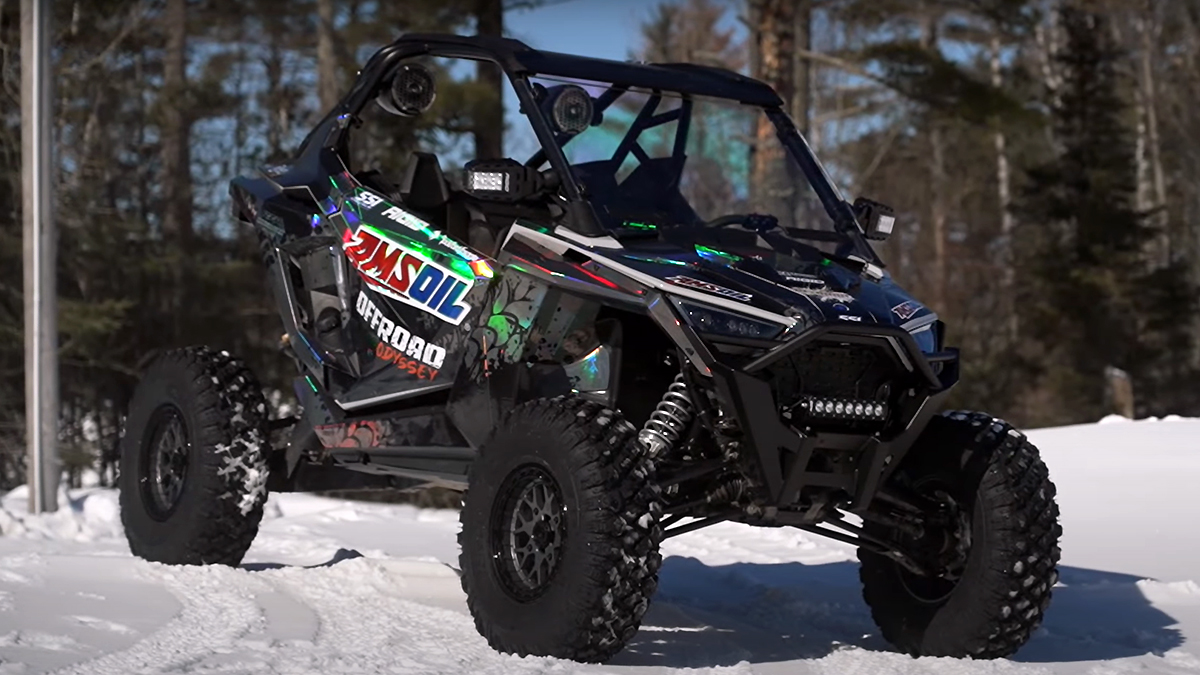

But why stop there? The RZR Pro XP turbo comes from the factory with excellent performance, so we took it to the next level. To improve handling and put maximum power to the ground, we chose to upgrade it the same way an owner is likely to, including engine and turbo mods, clutch work, electronics and suspension upgrades, plus a branded wrap, of course.

The accessories added weight and rotating mass, with bigger 32-inch wheels and tires, a roof, windshield, bumper and other mods, but what it really did was add stress. Modifying your machine increases stress and wear on the components that makes the lubricants work extremely hard. But we didn’t make the transmission or differential stronger, we simply put in stronger AMSOIL lubricants.

Most consumers will grab oil off the shelf without asking, “what does it do?” We test AMSOIL products thoroughly to ensure they will protect your equipment, no matter what you drive, or how hard you drive it. You don’t want to break your machine and miss the fun, so when you upgrade your ride, make sure it’s protected by AMSOIL.

Learn more about our custom build with Alexa Score and Offroad Odyssey.

What the video shows

Off-Road Odyssey host Alexa Score visits AMSOIL to customize a Polaris* RZR* Pro XP Sport. AMSOIL Director of Product Marketing Len Groom explains the conditions off-road and powersports equipment runs in and how AMSOIL formulates lubricants for them.
